Product Details
- Place of Origin: china
- Brand Name: RABOTEC
- Model Number: 25H
>>Applicable Material: Acrylics, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
>>Applicable Industry: Woodworking industry, stone industry, advertising industry, artwork or decoration industry, electronica industry, mold industry and music industry etc.
- Place of Origin: china
- Brand Name: RABOTEC
- Model Number: 25H

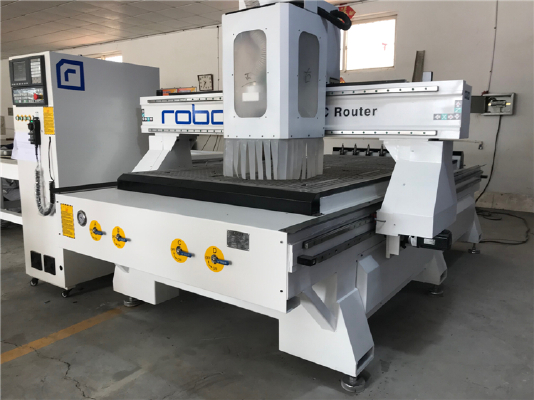

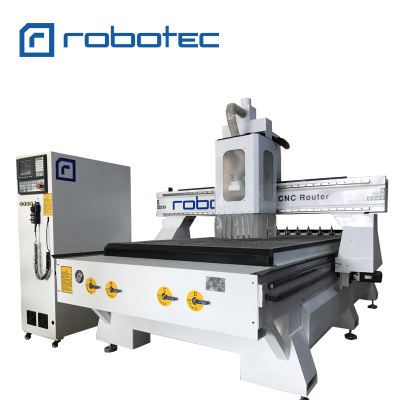

ATC CNC ROUTER MACHINE Tecnonical parameters:
| Model | RTM-25H |
| X,Y Working Area | 1300*2500mm |
| Z Working Area | 200mm |
| Table Size | 2200*3400mmmm |
| Resolution | 0.01mm |
| Lathe Structure | Seamless welded steel structure, better than cast iron one |
| X,Y Structure | Rack and pinion, gear drive, |
| Taiwan Hiwin H25 square guide rails | |
| Z Structure | Taiwan TBI ball screw, |
| Taiwan Hiwin 25 square guide rails | |
| Max. Idling Speed | 60m/min |
| Spindle | 9.0 KW air-cooling Italy HQD spindle(HSD optional) |
| Spindle Speed | 0-24000r/min, variable speed |
| Working Voltage | AC380V/50Hz |
| Motor and driver | Leadshine(YASKAWA optional) |
| Working Mode | Servo |
| Command | G code (HPGL,U00, mmg, plt) |
| Operating System | SYNTEC control system |
| Diameter of Cutter | φ3.175-φ12.7 |
| Cooling Mode | Air-cooling |
| Dust-collect Function | Yes |
| Work Holding | By suction or clamp |
| Tool Magazine | Linear-style auto-tool changer system with 8 pieces of tools |
| Net Weight | 1500KG |
